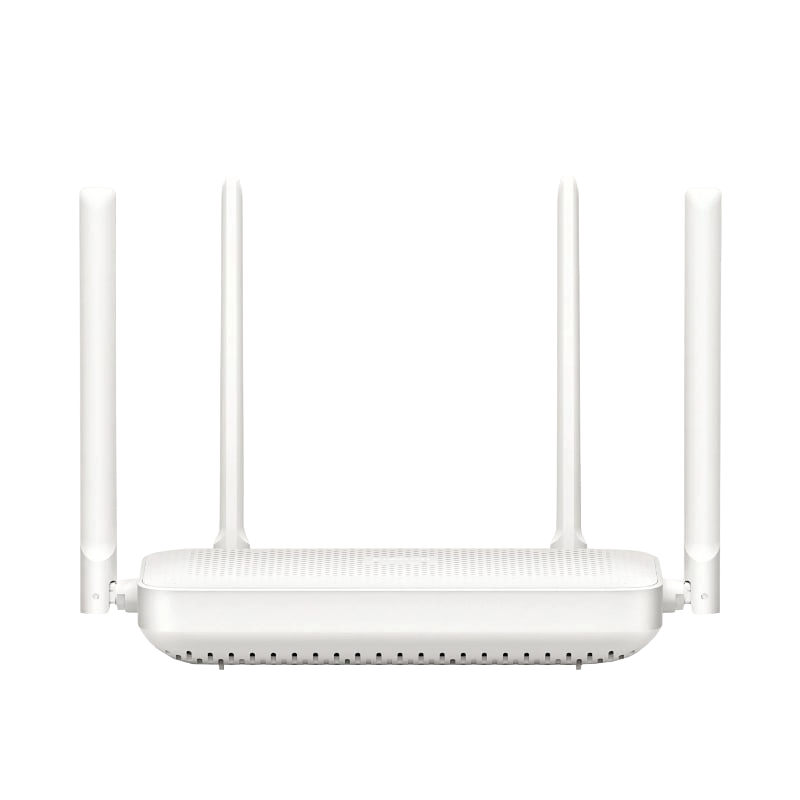

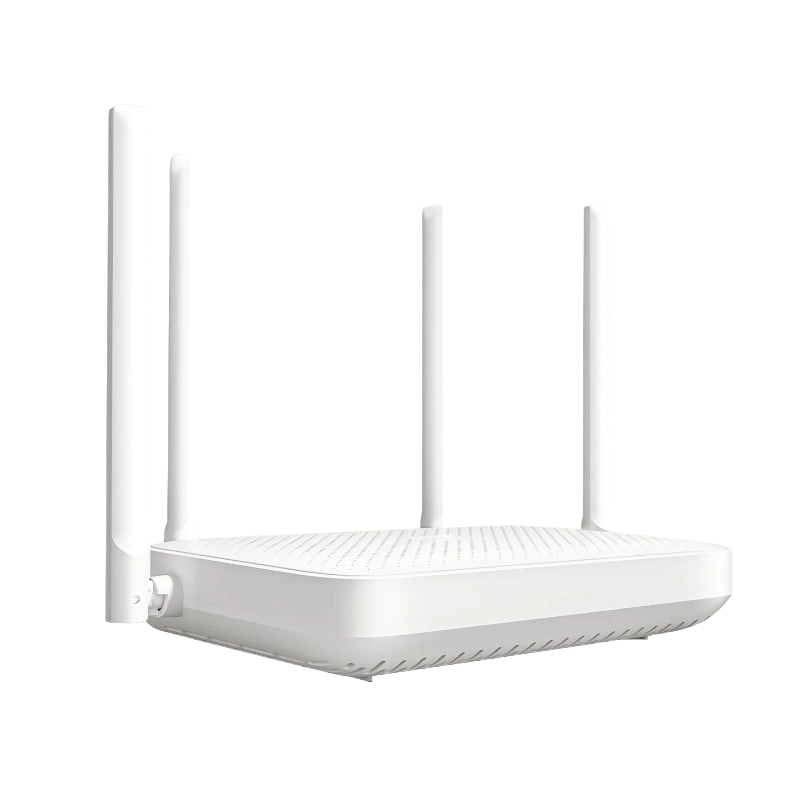

Xiaomi Wireless Router AX1500 (NEW SEALED)

Xiaomi Wireless Router AX1500

With the Xiaomi Dual Band AC1200 Router, you can enjoy a wireless dual band speed of 1167 Mbps for a faster and smoother online experience. The Xiaomi Router supports Smart Join, which combines the 2.4GHz and 5GHz bands into a single Wi-Fi name. This eliminates uncertainty about which Wi-Fi network to join. The 2.4GHz band delivers better performance through walls, while the 5GHz band provides faster speeds. A dual-band terminal chooses the best frequency band automatically.

4 precision-tested external omnidirectional antennas with a carefully designed internal structure and configuration significantly enhance transmission performance, especially in complicated situations. A carefully prepared metal substrate is coupled with nanomaterials with superior thermal radiation properties. It has high heat absorption and heat dissipation properties, allowing it to effectively lower chip temperature and increase system stability. The Xiaomi Router includes a large 128 MB of memory, which ensures data transfer stability and connectivity of each access device.

FEATURES:

• 4 External Antennas
• Self-adaptive gigabit ethernet ports
• Smoother experience up to 1500Mbp
• Control remotely via the Mi Home App
• Xiaomi smartphone gaming acceleration

SPECIFICATIONS:

• Hardware Configuration
  • 2.4G Wi-Fi: 2 × 2 (supports up to IEEE 802.11n protocol, the theoretical maximum rate is 300Mbps)
  • 5GHz Wi-Fi: 2 × 2 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 1201Mbps)
  • Antennas: 4 × High gain antennas
  • Heat Dissipation: Natural heat dissipation
  • Total Ports: 4 × 10/100/1000Mbps self-adaptive WAN/LAN port (Auto MDI/MDIX)
  • LED Indicator Light: 2 lights (System indicator × 1, Internet indicator × 1)
  • System Reset Button: x1
  • Mesh Networking Button: x1
  • Power Input Port: x1
  • Protocol Standards: IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab
• Wireless Specifications
  • Dual-band: 2.4GHz, 5GHz
• Modulation
  • 1b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps)
  • 11a/g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps)
  • 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Data rate: MCS0-MCS15
  • 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
  • 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
  • Data rates: MCS0-MCS11 (supports 2 streams)
• Software Specifications
  • Operating System: MiWiFi ROM
  • Wi-Fi Encryption: WPA-PSK/WPA2-PSK/WPA3-SAE encryption, Wireless access control (black and white list), SSID hidden
  • Management Applications: Supports Web, Mi Home/Xiaomi Home App (Android, iOS)
• Working Environment
  • Working Environment Temperature: 0 ~ 40°C
  • Operating Humidity: 10% ~ 90% RH (non-condensing)
  • Storage Temperature: -40 ~ 70℃
  • Storage Humidity: 5% ~ 90% RH (non-condensing)

WHAT’S IN THE BOX:

• Xiaomi Router AX1500 – White x1
• Network Cable x1
• Power Adapter x1
• User Manual x1
